Start with your site

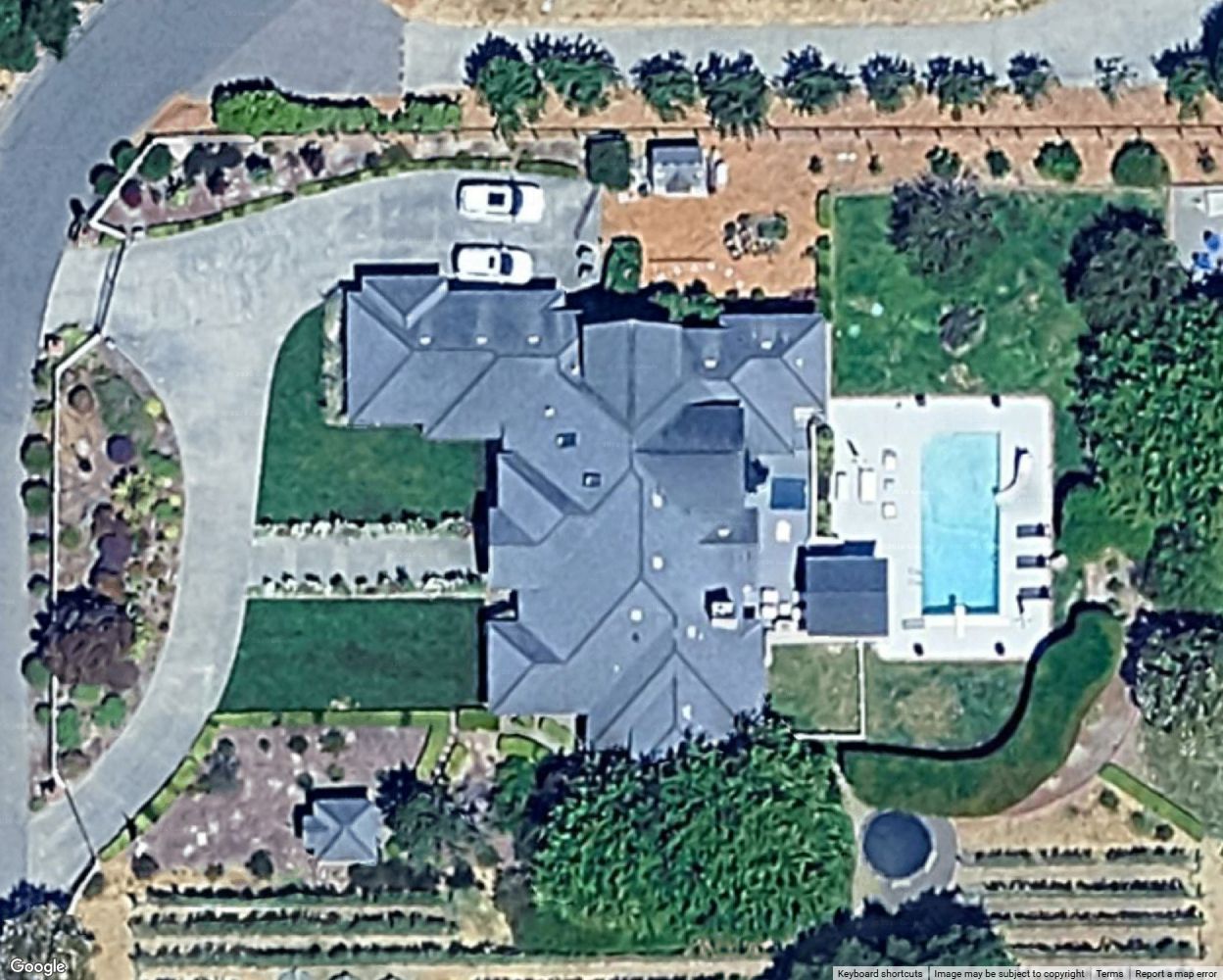

Search an address, find the house and mark its entry points. Start with a clear view of the property and the areas you want to cover.
CAMERA PLANNING, MADE CLEAR
See your security system
before you install it.
Place security cameras, doorbells, access points, NVRs, network switches and more on a map with our CCTV design tool. Explore coverage, plan connections, and share branded designs with your clients and installation team.
Try the map without an account. Sign in to save projects and export PDFs.
Example InstallerExample company branding
🔵 Outdoor pair🟣 Indoor🟠 Doorbell● Network
FROM IDEA TO INSTALLATION PLAN
Make coverage visible

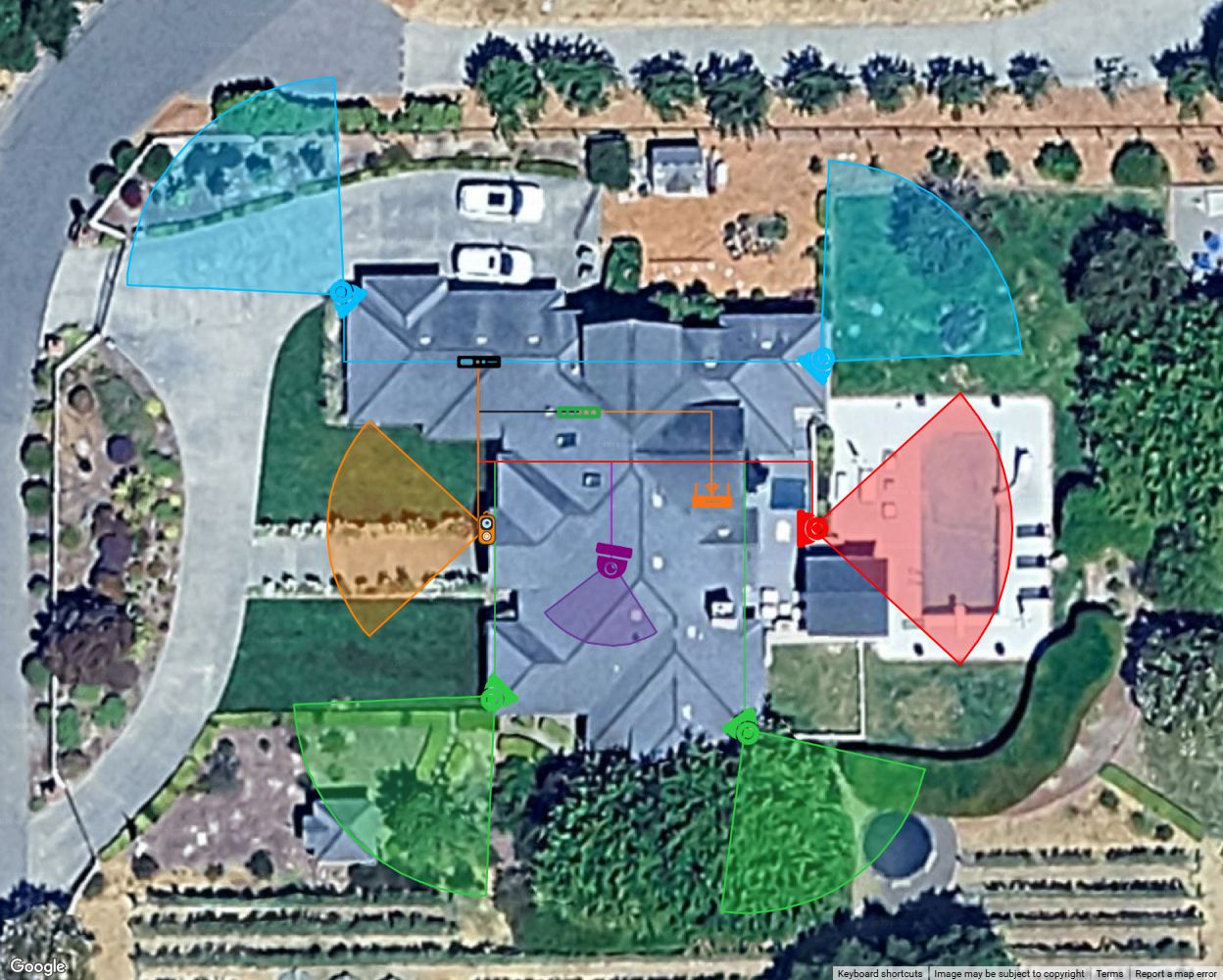

Group cameras by color, cover the entrances and connect the network. Here, cameras return to the PoE NVR and the access point connects to the PoE switch.
Leave with a useful plan

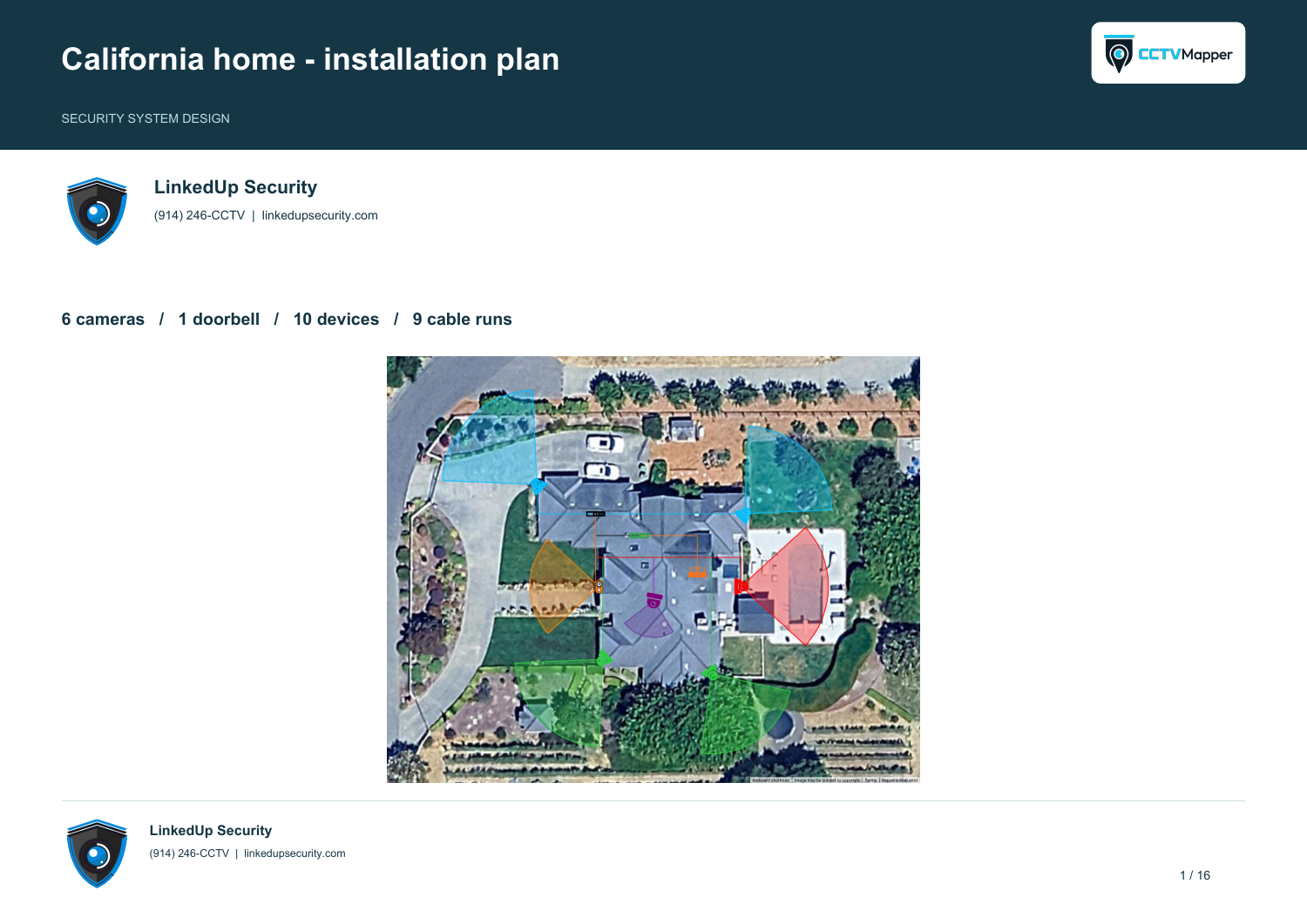

Share the proposed layout with your client, then hand over a map PDF, printed plan, or equipment and cable schedule.
ONE CONNECTED LAYOUT
Your system. Your mix of devices.
Plan cameras, smart doorbells, recorders, PoE switches, access points, computers and Blue Iris PCs together. Plan your own upgrade or present an installation layout to your client.
Plan a security camera system →DETAIL THAT TRAVELS WITH YOU
Enough detail to get started.
Keep notes, compare viewing angles and estimate connections. Use an image overlay on Gold or higher, then document the final design.
See how export works →
Client share page PDF & image exports
BUILT FOR DESIGNERS & INSTALLERS
A better handoff.
Your name on it.
Give your client a clear picture of the system you propose, before the first cable is run with our CCTV design tool.

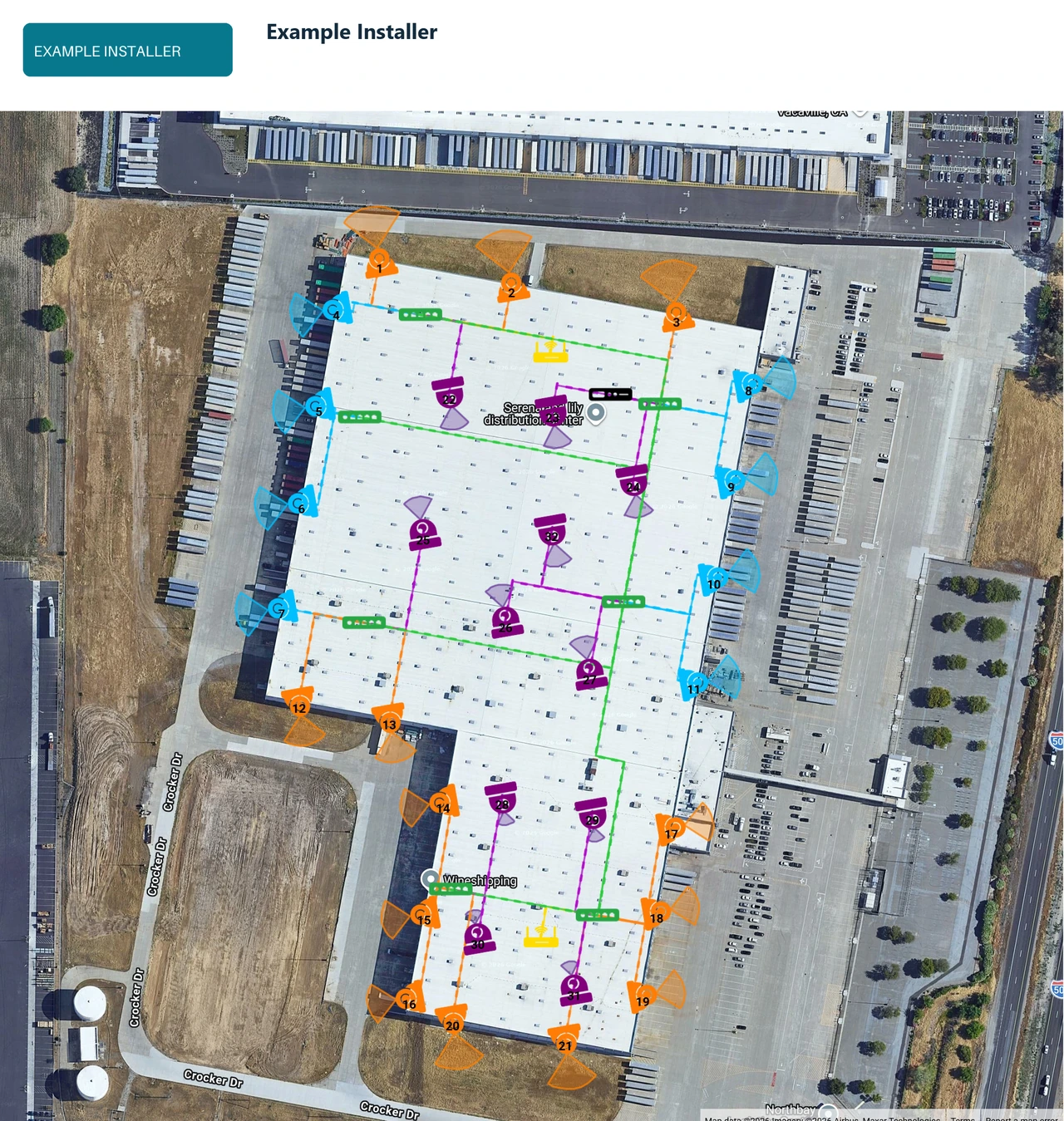

Show camera coverage, color-code device groups and trace cable routes. Then share the design with your client and the crew installing it.
Your company details, branded on your maps.
Add your logo, name, address, phone and website to shared maps and PDF, PNG or JPG exports. Company branding is included with Diamond and Unlimited.
A CLEARER START
Start with one useful question.
YOUR NEXT INSTALLATION STARTS HERE
From an address
to a shared plan.
Try a layout in the Mapper, then create your account to save it and keep building.
- 01Find the site
Search the address and identify the areas to cover.
- 02Build the layout
Place devices, aim cameras and route the connections.
- 03Bring everyone into the plan
Save your design and share it with your client or installer.
WE’RE HERE TO HELP
Let’s Talk
Have a question about CCTV Mapper, need help with a feature, or have an idea to share? We’d love to hear from you.
